How to Choose Kitchen Cabinet Door Opening Mechanisms: A Complete Checklist

Looking to update your kitchen affordably? Check our discount Shaker cabinets in White, Blue, and Gray, featuring premium quality at unbeatable prices—delivering style and savings in every design you love.

Ayden B Ellis

All Posts

December 4, 2025

Every time you open a kitchen cabinet, you’re interacting with hardware that most homeowners never think about—until something goes wrong. A slamming door that startles the family at 6 AM. A heavy upper cabinet that swings into your face while you’re reaching for a coffee mug. A beautiful handleless design that leaves fingerprint smudges everywhere. These everyday frustrations aren’t inevitable; they’re the result of choosing the wrong cabinet door opening mechanism for your specific needs.

In 2026, kitchen cabinetry has evolved far beyond basic hinges. From whisper-quiet soft-close technology to motorized servo-drive systems that open with a single touch, today’s opening mechanisms can transform your kitchen experience—improving safety, preserving cabinet longevity, and elevating your home’s functionality.

Whether you’re a dealer specifying hardware for high-volume projects, a contractor upgrading a client’s outdated kitchen, or a homeowner investing in your forever home, this comprehensive checklist will ensure you select the perfect opening mechanisms for every cabinet in your space. Let’s dive into everything you need to know—from Blum AVENTOS lift systems to the Compact BLUMOTION hinges standard on Fabuwood, Wolf, and Mantra cabinets available at USA Cabinet Express.

Key Takeaways & Action Steps

Soft-close hinges are now standard across premium cabinet lines including Fabuwood, Wolf, and Mantra—they extend cabinet life and eliminate noise
Lift systems (Blum AVENTOS) transform upper cabinet accessibility—doors move up and out of the way for unobstructed access
Push-to-open mechanisms (TIP-ON) enable handleless, minimalist kitchen designs trending in 2026
6-way adjustable hinges come standard on Fabuwood and Wolf cabinets—essential for perfect door alignment
Durability matters: high-quality hinges should be rated for 80,000+ open/close cycles
Match mechanism to cabinet type: standard hinges for base/wall cabinets, lift systems for overhead, corner solutions for blind corners

Why Cabinet Door Opening Mechanisms Matter More Than Ever

The kitchen cabinet hardware you select impacts daily functionality, long-term durability, and overall kitchen aesthetics. As cabinetry evolves beyond simple storage to become a central design element, the mechanisms that control how doors open, close, and stay in position have become critical decision points for homeowners, contractors, and dealers alike.

This comprehensive checklist will guide you through selecting the right opening mechanisms for your kitchen project—whether you’re specifying cabinets for a custom build, upgrading existing cabinetry, or helping clients navigate their options. We’ll cover everything from basic soft-close hinges to advanced servo-drive systems, with specific recommendations from industry-leading brands available through USA Cabinet Express, including Fabuwood, Wolf Home Products, and Mantra Cabinets.

Understanding Cabinet Door Opening Mechanism Types

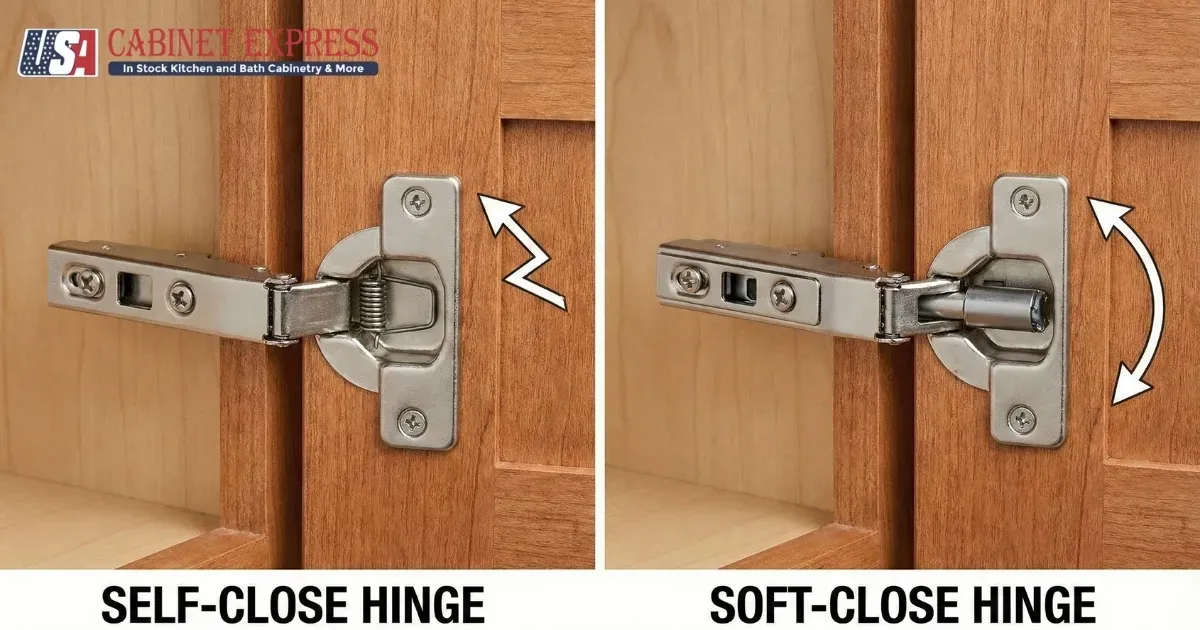

1. Standard Hinges: Self-Close vs. Soft-Close

The foundation of cabinet door operation, hinges determine how smoothly and quietly your cabinets function daily. Understanding the distinction between self-close and soft-close mechanisms is essential for making the right choice.

Self-Close Hinges

Self-closing hinges use an internal spring mechanism that engages when the door is partially open, automatically pulling the door shut. While functional, they close with more force and produce audible sound upon contact with the cabinet frame.

Budget-friendly option for entry-level projects
Ensures doors close completely (helpful in busy kitchens)
May produce noise and accelerate wear on cabinet frames

Soft-Close Hinges

Soft-close hinges incorporate hydraulic or pneumatic damping mechanisms that slow the door’s closing motion in the final inches before contact. This technology has become the industry standard for premium cabinetry.

Fabuwood Standard: All Fabuwood Allure cabinets feature Blum Compact BLUMOTION soft-close hinges with 6-way adjustability
Wolf Home Products: Wolf Classic, Designer, and Endeavor lines offer 6-way adjustable, fully concealed hinges with soft-close on select products
Mantra Cabinets: All Mantra cabinets include soft-closing, 6-way adjustable concealed hinges as standard

Soft-Close vs. Self-Close Comparison

Feature	Soft-Close	Self-Close
Noise Level	Near silent operation	Audible closing sound
Cabinet Wear	Minimal—gentle closure	Higher—impact stress
Safety	Excellent—prevents finger injuries	Moderate—faster closure
Cost	Premium (10–15% more)	Budget-friendly
Cycle Rating	80,000+ cycles (Blum)	40,000–60,000 cycles typical

2. Lift Systems for Upper Cabinets

Lift systems represent the premium tier of cabinet door mechanisms, transforming how users interact with wall cabinets. Instead of swinging outward into the user’s face, doors lift up and out of the way, providing unobstructed access to cabinet contents and full freedom of movement in the kitchen.

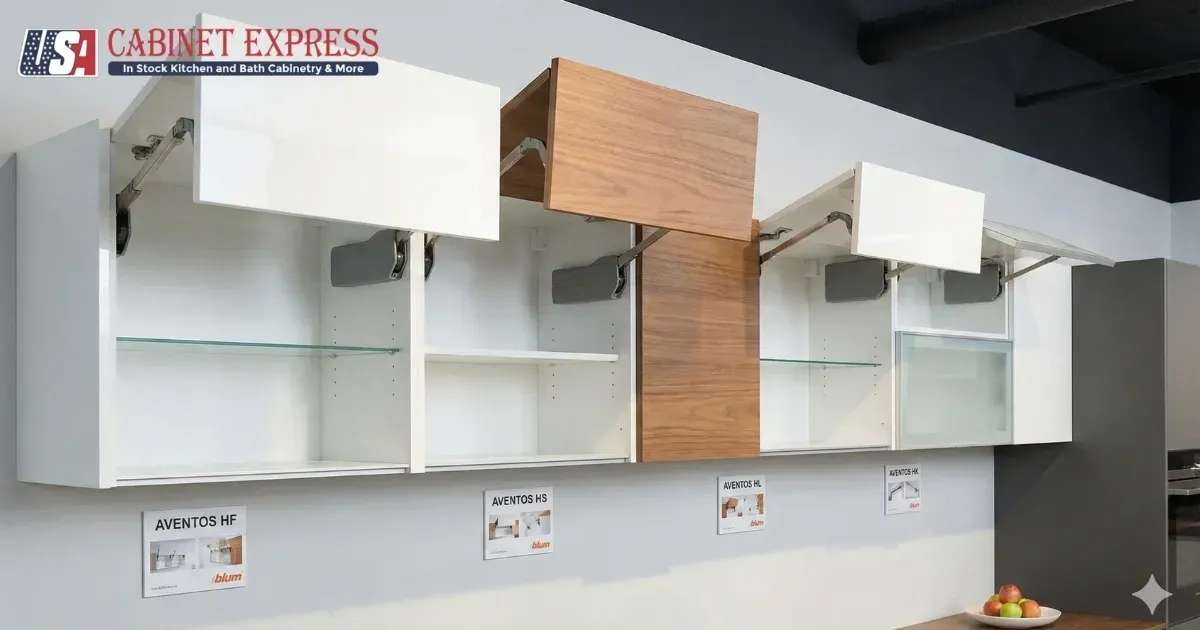

Blum AVENTOS Lift System Options

Blum’s AVENTOS series offers multiple configurations to match different cabinet designs and user preferences:

AVENTOS HF (Bi-Fold): Two-part door folds in the center when opened. Ideal for tall wall cabinets (18-7/8″ to 42″ height, up to 72″ width)
AVENTOS HS (Up and Over): Single door swings up and over the cabinet. Perfect for designs with cornices or crown moldings
AVENTOS HL (Lift Up): Door lifts straight up parallel to cabinet. Ideal for wider cabinet fronts and modern aesthetics
AVENTOS HK-S (Stay Lift): Compact solution for smaller cabinets (7-3/8″ to 15-3/4″ height). 107° opening angle

Key Benefits of Lift Systems:

Doors stay open and out of the way while you work
Variable stop function—doors stay where you position them
Integrated BLUMOTION soft-close technology
Rated for 80,000 opening/closing cycles
Compatible with TIP-ON for handleless designs

3. Push-to-Open (TIP-ON) Mechanisms

For homeowners pursuing the handleless, minimalist kitchen aesthetic trending in 2026, push-to-open mechanisms provide the solution. Blum’s TIP-ON technology allows cabinet doors and drawers to open with a simple touch—no handles required.

How Push-to-Open Works

Light pressure on the cabinet front activates the mechanism
Spring-loaded or magnetic latch releases, opening the door
Door opens approximately 1½” for easy grip
Pressing the door closed re-engages the latch

Best Applications:

High-gloss acrylic cabinet finishes (prevents fingerprints on hardware)
Modern, European-style frameless cabinetry
Slab door styles (Fabuwood Fusion, Wolf Designer Dapper FO)
Integrated appliance panels
Accessible designs for users with limited hand mobility

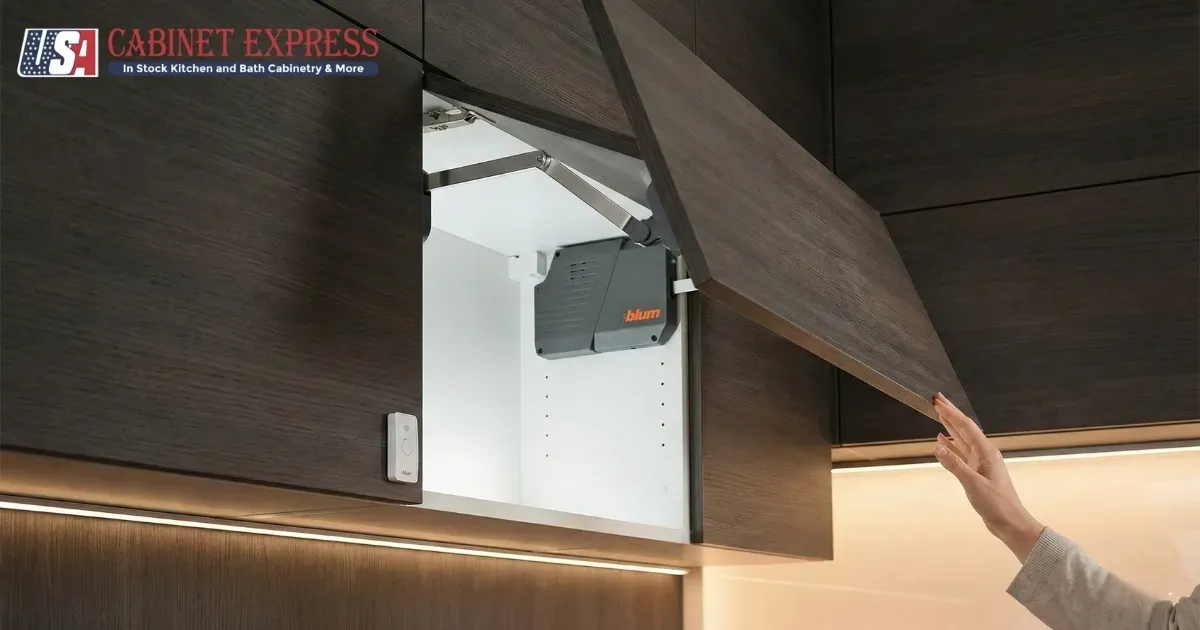

4. Electronic SERVO-DRIVE Systems

For ultimate convenience, Blum’s SERVO-DRIVE system provides electronic opening and closing. A light touch triggers motorized operation—the door or drawer opens automatically and closes with soft-close action. This represents the cutting edge of kitchen cabinet technology.

Installation Considerations:

Requires electrical connection (typically low-voltage)
Compatible with AVENTOS lift systems and TANDEM drawer runners
Ideal for smart home integration
Higher cost but exceptional user experience
Best suited for luxury and accessible design applications

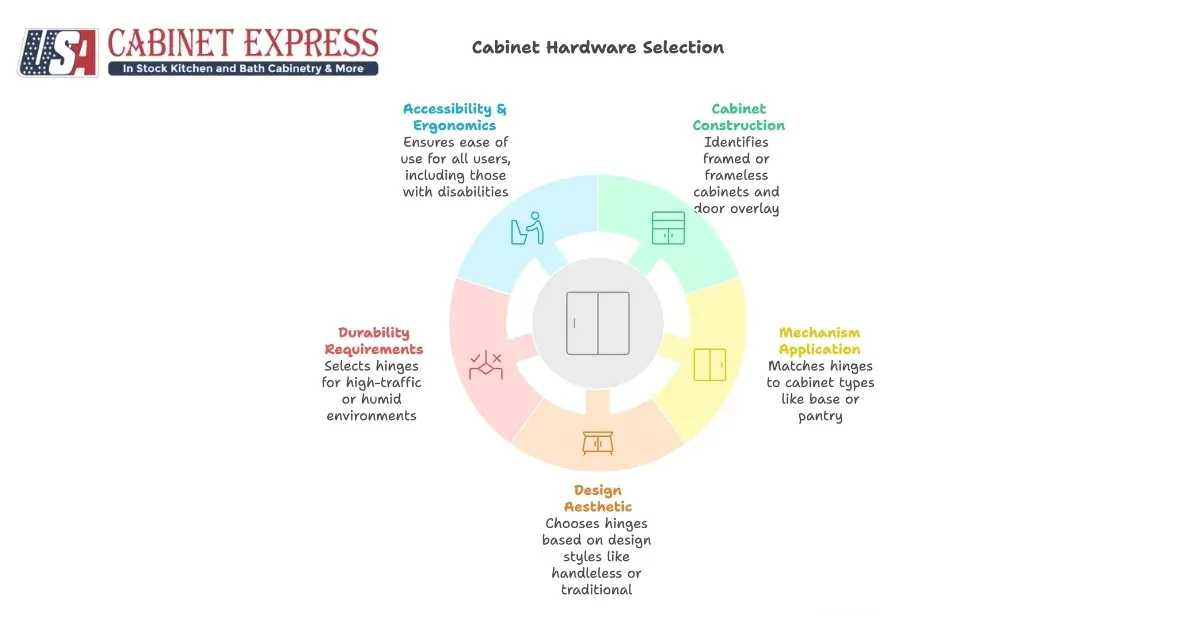

The Complete Cabinet Door Opening Mechanism Checklist

Use this checklist when specifying or selecting cabinet hardware for your kitchen project. Check each item as you work through your decision-making process.

☑ Step 1: Assess Your Cabinet Construction Type

Identify cabinet construction: Framed (face frame) or Frameless (European)
Determine door overlay: Full overlay, partial overlay, or inset
Measure door dimensions (height, width, thickness)
Calculate door weight based on material (solid wood, MDF, thermofoil)
Note: Fabuwood uses face frame construction; Wolf offers both options

☑ Step 2: Match Mechanism to Cabinet Application

Base cabinets: Standard soft-close hinges (Blum CLIP top, Compact)
Wall/upper cabinets: Standard hinges OR lift systems (AVENTOS)
Tall pantry cabinets: Bi-fold lift systems (AVENTOS HF)

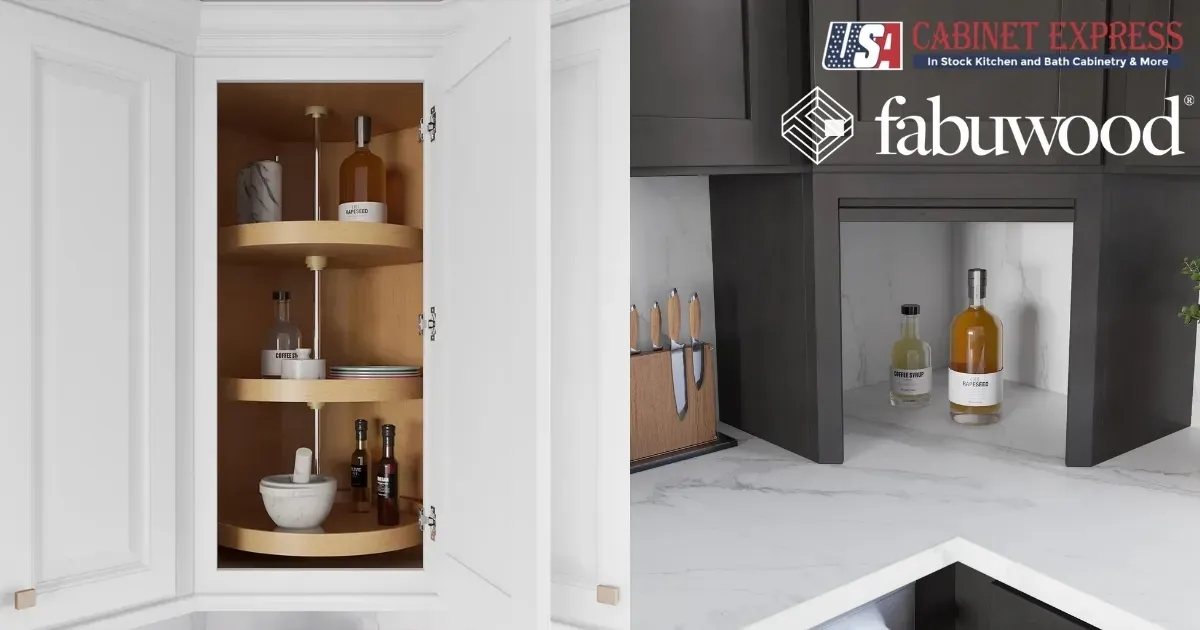

Corner cabinets: Specialty hinges (45°/90° blind corner hinges)
Appliance garages: Lift systems with variable stop

☑ Step 3: Consider Your Design Aesthetic

Handleless design desired? → Select TIP-ON compatible hinges
Traditional with visible hardware? → Standard hinges work perfectly
High-gloss/fingerprint-prone finishes? → Push-to-open recommended
Modern minimalist? → Concealed hinges essential
Open-plan living space? → Prioritize silent operation (soft-close)

☑ Step 4: Evaluate Durability Requirements

High-traffic kitchen? → Specify hinges rated 80,000+ cycles
Family with children? → Soft-close mandatory for safety
Coastal/humid environment? → 316-grade stainless or corrosion-resistant
Heavy doors (>26 lbs)? → Three hinges minimum; verify load rating
Rental/multi-family? → Standard soft-close for durability + value

☑ Step 5: Accessibility & Ergonomics

ADA compliance needed? → TIP-ON or SERVO-DRIVE systems
Upper cabinet accessibility concern? → Lift systems keep doors out of way
Limited hand mobility? → Push-to-open eliminates grip requirements
Kitchen work triangle flow? → Lift-up doors don’t impede movement
Child-proofing planned? → Verify magnetic lock compatibility with soft-close

Brand-Specific Hardware: What USA Cabinet Express Offers

Fabuwood Cabinetry Hardware

Fabuwood was the first cabinet company to standardize Blum’s innovative Compact Clip hinges across an entire cabinet line. All Fabuwood Allure cabinets come equipped with premium Blum hardware:

Blum Compact BLUMOTION Hinges: Soft-close technology with clip-on installation—no tools required
6-Way Adjustability: Side (+/- 1/16″), height (+/- 1/8″), and depth (+3/32″, -1/32″) adjustment
110° Opening Angle: Full access to cabinet interiors
Concealed Design: Hardware hidden when doors are closed

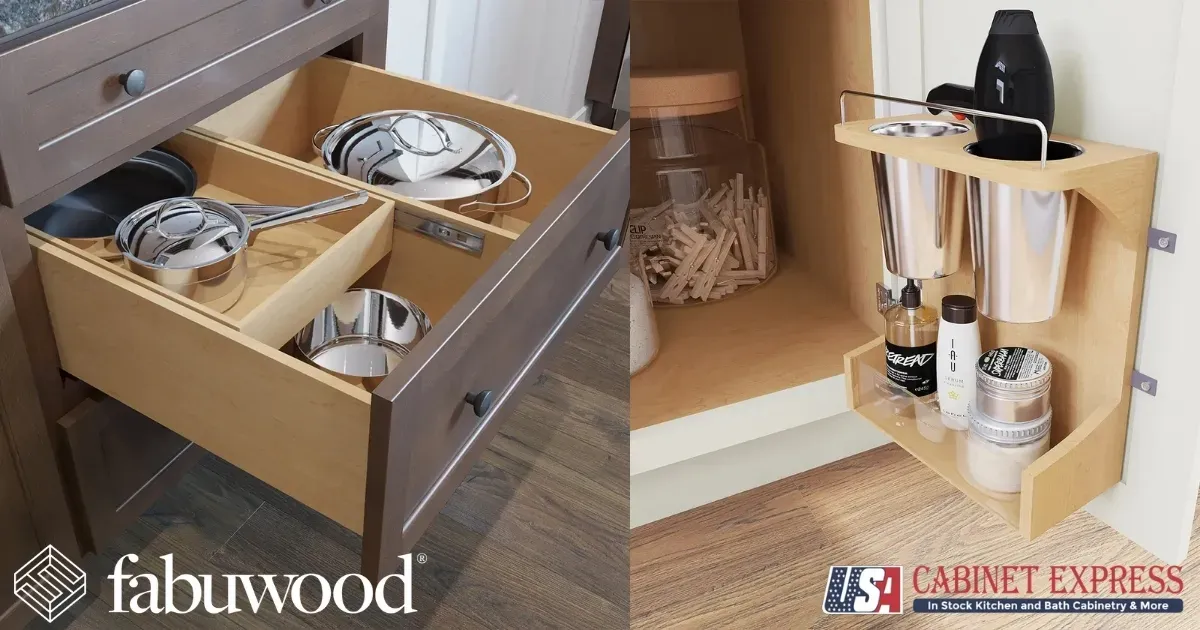

TANDEM Plus BLUMOTION Drawer Runners: Full-extension, soft-close drawer slides

Available Lines: Luna, Galaxy, Nexus, Fusion, Onyx, Imperio, Illume

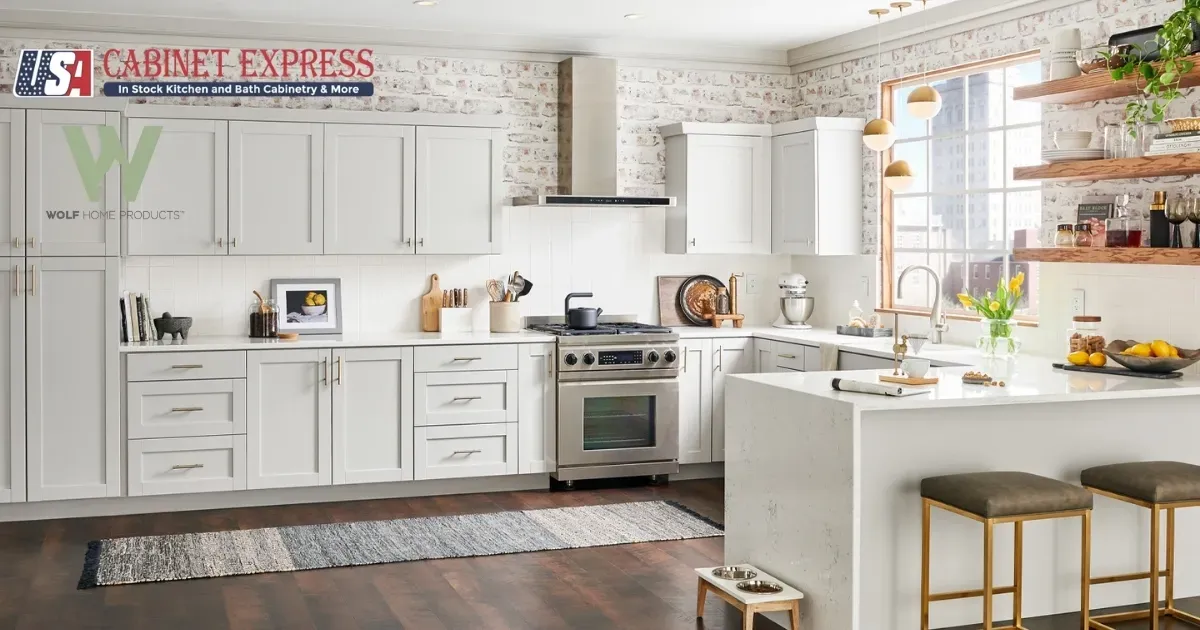

Wolf Home Products Hardware

Wolf cabinets offer hardware options across multiple product lines, from entry-level to premium:

Wolf Classic & Endeavor: 6-way adjustable, fully concealed hinges; soft-close on select models
Wolf Designer: Premium 6-way adjustable hinges; full customization available
Wolf Artisan: Soft-close doors and drawers standard; solid-wood dovetail construction
Builders Mark: 6-way adjustable, self-closing hinges at entry price point
5-Year Limited Lifetime Warranty: Industry-leading protection on Wolf Classic

Mantra Cabinets Hardware

Backed by MasterBrand Cabinets, Mantra delivers premium hardware at accessible price points:

Soft-Close Standard: All cabinets include soft-close hinges and drawer guides
Concealed, Adjustable Hinges: 6-way adjustment for perfect alignment
Full-Extension Undermount Drawer Slides: Soft-close operation on all drawers
All-Plywood Construction: Solid foundation for hardware mounting
5-Year Limited Warranty: Protection on materials and workmanship

Available Lines: Classic, Omni, Spectra—multiple finishes including Snow, Bark, and specialty colors

Technical Considerations for Professionals

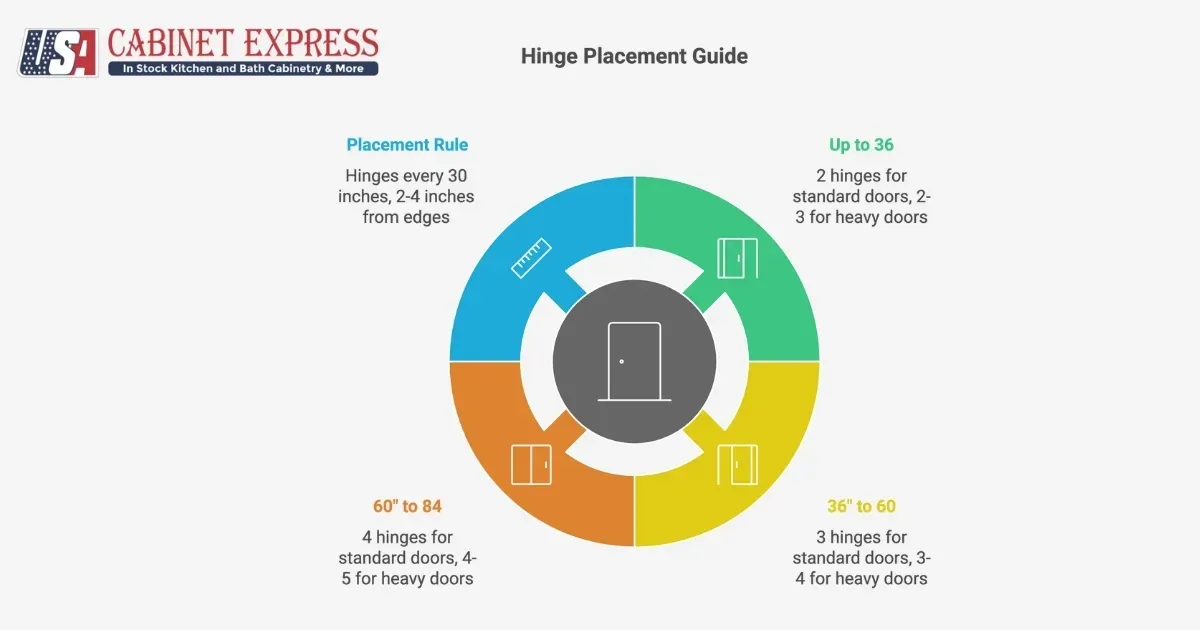

Hinge Count by Door Height

Proper hinge quantity prevents door sagging and ensures long-term performance:

Door Height	Standard Weight	Heavy Doors
Up to 36″	2 hinges	2–3 hinges
36″ to 60″	3 hinges	3–4 hinges
60″ to 84″	4 hinges	4–5 hinges

Rule of thumb: Place hinges every 30 inches, with first and last hinges positioned 2-4 inches from door edges.

Torque and Power Factor Calculations

For lift systems, proper power factor selection ensures the mechanism can support your specific door weight and dimensions. Blum provides an Online Product Configurator (OPC) that calculates the correct lift mechanism based on door width, height, and material weight. This tool is essential for specifying AVENTOS systems correctly.

Retrofitting Existing Cabinets

Upgrading existing cabinetry with soft-close mechanisms is straightforward when you follow these steps:

Measure existing hinge holes: Standard cup bore is 35mm diameter, 11mm deep
Determine overlay type: Full overlay, half overlay, or inset
Match hinge style: Face frame vs. frameless mounting requirements
Install new hinges: May require filling/redrilling if hole patterns differ
Adjust alignment: Use 6-way adjustment for perfect door positioning

Frequently Asked Questions for How to Choose Kitchen Cabinet Door Opening Mechanisms?

What is the typical price difference between Blum AVENTOS and Hafele Free flap lift systems?

Blum AVENTOS systems typically command a 15-25% premium over comparable Hafele Free flap systems. However, AVENTOS offers superior build quality, broader configurability, and an 80,000-cycle durability rating. For most kitchen applications, the investment in Blum hardware delivers better long-term value through reduced maintenance and longer service life.

How many open/close cycles should a high-quality cabinet hinge be rated for?

Premium hinges like Blum’s CLIP top series are rated for 80,000+ cycles, which translates to approximately 20+ years of typical residential use. Entry-level hinges may only be rated for 40,000-60,000 cycles. All Fabuwood, Wolf (premium lines), and Mantra cabinets include hinges meeting these higher durability standards.

Are touch-to-open or servo-drive systems better for ADA compliance?

Both systems excel in accessible design, but servo-drive systems offer superior ease of use for individuals with limited hand strength or mobility. Touch-to-open (TIP-ON) requires physical pressure to activate, while SERVO-DRIVE opens automatically with minimal touch. For full ADA compliance, servo-drive systems paired with pull-down upper cabinet hardware provide optimal accessibility.

What are the pros and cons of push-to-open mechanisms on base cabinets?

Pros: Seamless handleless appearance, no hardware to catch on clothing, easy to activate with knee or elbow when hands are full.

Cons: May accidentally open when brushed, higher cost than standard hinges, requires more precise door alignment, not recommended for very large or heavy doors.

How do you prevent fingerprints on push-to-open high-gloss cabinets?

Several strategies help maintain high-gloss finishes with push-to-open systems: (1) Position the touch point low on the door where smudges are less visible, (2) Select matte or satin finishes instead of high-gloss for touch areas, (3) Use servo-drive for automatic opening with minimal contact, (4) Apply anti-fingerprint coatings, (5) Keep microfiber cloths accessible for quick wipe-downs.

Are magnetic cabinet locks compatible with soft-close hinges?

Yes, magnetic child-safety locks work seamlessly with soft-close hinges. The soft-close damping mechanism doesn’t interfere with the magnetic lock engagement. For best results, install magnetic locks on the interior of the cabinet near the top of the door, allowing the lock to engage before the soft-close takes over the final closing motion.

Can you use European-style hinges on face frame cabinets?

Absolutely. European-style concealed hinges (like those used in Fabuwood and premium Wolf cabinets) work on both face frame and frameless construction. Face frame applications require mounting plates that attach to the frame, while frameless cabinets use plates that mount directly to cabinet sides. This versatility is why Blum hinges are standard across multiple cabinet construction types.

What is the best material for cabinet hinges in a coastal environment?

For coastal kitchens exposed to salt air and humidity, specify 316-grade stainless steel hinges or those with advanced corrosion-resistant coatings. Standard nickel-plated hinges will corrode quickly in marine environments. Wolf’s outdoor Endurance line uses powder-coated aluminum and corrosion-resistant hardware specifically engineered for harsh conditions.

What percentage of a kitchen cabinet budget should be allocated to hardware?

Hardware (hinges, drawer slides, decorative pulls/knobs) typically represents 3-8% of total cabinet budget for standard soft-close systems, rising to 10-15% for premium lift systems and electronic servo-drive configurations. However, this investment directly impacts daily user experience and cabinet longevity. USA Cabinet Express includes premium Blum hardware standard with Fabuwood, Wolf, and Mantra cabinets—no upcharge required.

What tools are needed to adjust a Blum CLIP top hinge?

Only a Phillips or Pozidriv screwdriver is needed for most adjustments. The three adjustment screws control: (1) Side-to-side movement—front cam screw, (2) Height—loosening installation screws and repositioning, (3) Depth/door gap—rear cam screw. For Fabuwood’s Compact BLUMOTION hinges, no tools are required for installation—the clip-on mechanism simply snaps into place.

Ready to Choose Your Cabinet Door Opening Mechanisms?

Whether you’re a contractor specifying hardware for a custom build, a dealer stocking inventory, or a homeowner planning your dream kitchen, USA Cabinet Express provides the cabinet brands and expert support to make your project successful.

Convenient Delivery & Pickup Services

At USA Cabinet Express, timing and safe handling are make-or-break for your project’s success. Our delivery and pickup services are designed with flexibility, convenience, and reliability as top priorities.

Delivery Services Include:

Order Confirmation & Scheduling: We’ll find a delivery date that fits perfectly with your project timeline
Pre-Delivery Inspection: Every item receives a thorough quality check before shipping
Secure Transportation: Well-maintained trucks with proper equipment to protect your cabinets
On-Site Handling: Our team carefully unloads and places cabinets exactly where you need them

Pickup Services Include:

Flexible Scheduling: Select a pickup time at our showroom or warehouse that works for you
Order Preparation: Your order is prepped, packaged, and ready when you arrive
Loading Assistance: Our team helps load items safely into your vehicle

Learn more: usacabinetexpress.com/delivery-and-pickup

For Dealers & Distributors

Visit a USA Cabinet Express showroom to review full Fabuwood, Wolf, and Mantra product lines
Leverage our no-wait inventory for competitive advantage over 8-12 week lead time suppliers
Establish displays showing hardware options and adjustment capabilities

For Contractors & Builders

Order sample doors to demonstrate finish and hardware options to clients
Take advantage of same-day pickup to eliminate scheduling delays
Attend USA Cabinet Express contractor training on RTA assembly and hardware adjustment

For Homeowners & Remodelers

Schedule a showroom appointment with your kitchen dimensions and inspiration photos
Experience soft-close, lift systems, and push-to-open mechanisms in person
Borrow sample doors to evaluate finish in your home’s lighting before committing

Contact USA Cabinet Express Showrooms

Austin, Texas

📍 2112 Rutland Dr #185, Austin, TX 78758

📞 Call: (469) 336-9201

📧 Email: markg@usacabinetexpress.com

🕐 Hours: Mon-Fri 8AM-6PM, Sat 9AM-5PM, Sun Closed

Chesapeake, Virginia

📍 1543 Sams Cir, Chesapeake, VA 23320

📞 Call: (757) 296-6669 | (757) 937-1737

📧 Email: chesapeake@usacabinetexpress.com
